High Performance Refrigerants

Refrigerants


DAIKIN-134a (20kg)
Appearance : Colorless, Transparent
Smell : No Abnormal Odor
Purity :
99.90 % Min.
Moisture / Water Content :
15 ppm Max.
Evaporation Residue :
15 ppm Max.
Acidity Content (as HCL) :
1 ppm Max.
Chloride (content of CT) :
100 ppm Max.
Non-Condensing Vapour :
1.3 vol% Max.
Packaging Specifications :
20kg (Refillable Cylinder)

DAIKIN-134a (60kg)
Appearance : Colorless, Transparent
Smell : No Abnormal Odor
Purity :
99.90  % Min.
Moisture / Water Content :
15 ppm Max.
Evaporation Residue :
15 ppm Max.
Acidity Content (as HCL) :
1   ppm Max.
Chloride (content of CT) :
100 ppm Max.
Non-Condensing Vapour :
1.3   vol% Max.
Packaging Specifications : 60kg        (Refillable Cylinder)

DAIKIN-134a (800-950kg)
Appearance : Colorless, Transparent
Smell : No Abnormal Odor
Purity :
99.90  % Min.
Moisture / Water Content :
15 ppm Max.
Evaporation Residue :
15 ppm Max.
Acidity Content (as HCL) :
1   ppm Max.
Chloride (content of CT) :
100   ppm Max.
Non-Condensing Vapour :
1.3   vol% Max.
Packaging Specifications : 800kg-950kg           (Ton-Tank)

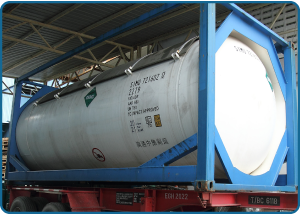

DAIKIN-134a (15mt-20mt)
Appearance : Colorless, Transparent
Smell : No Abnormal Odor
Purity :
99.90     % Min.
Moisture / Water Content :
15 ppm Max.
Evaporation Residue :
15 ppm Max.
Acidity Content (as HCL) :
1  ppm Max.
Chloride (content of CT) :
100  ppm Max.
Non-Condensing Vapour :
1.3  vol% Max.
Packaging Specifications : 15mt-20mt           (ISO-Tank)

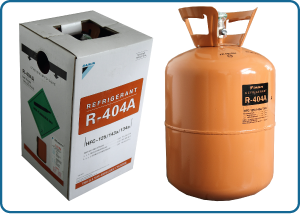

DAIKIN-404A (10.0kg)
Component : HFC-125/143a/134a
Composition (mass %) : 44/52/4
Molecular Weight : 97.60
Boiling Point (°C) : -46.8
Critical Temperature (°C) : 72.0
Critical Pressure (MPa) : 3.72
Critical Density (kg/m³) : 493
Density – Saturated liquid (kg/m³) : 1043
Specific Volume – Saturated vapour (m³/kg) : -Nil-
Viscosity - Saturated liquid (mPa·s) : 0.128
Viscosity - Saturated vapor (mPa·s) : 0.0122
Isobaric Specific Heat Capacity - Saturated liquid (kJ/kg.K) : 1.69
Isobaric Specific Heat Capacity - Saturated vapor (kJ/kg.K) : 0.876
Latent Heat of Vaporization (Boiling point) (kJ/kg) : 207.6
Thermal Conductivity – Saturated liquid (W/m·K) : 0.0683
Thermal Conductivity – Saturated vapor (W/m·K) : 0.0135
Workplace Environmental Exposure Limit (ppm) : 1000
Flammability *1 : Non-flammable
Ozone Depletion Potential (CFC11=1) : 0
Global Warming Potential *2 (CO2=1) : 3920
Solubility of Water (ppm) : 700
Packaging Specifications : 10.0kg (Disposable Cylinder)

Unless otherwise specified, the values in above table are at 25°C
*1 Based on ASHRAE 34 STANDARD
*2 Based on IPCC 4th Assessment Report 2007, integration time horizon 100 years.

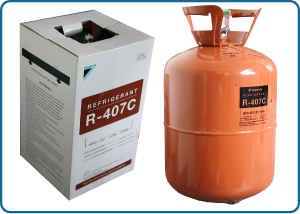

DAIKIN-407C (10.0kg)

Component : HFC-32/125/134a
Composition (mass %) : 23/25/52
Molecular Weight : 86.2
Boiling Point (°C) : -43.6
Freezing Point (°C) : -115
Critical Temperature (°C) : 85.62
Critical Pressure (MPa) : 4.613
Critical Density (kg/m³) : 495
Density – Saturated liquid (kg/m³) : 495
Density – Saturated vapor (m³/kg) : 0.0229
Viscosity - Saturated liquid (mPa·s) : 0.164
Viscosity - Saturated vapor (mPa·s) : 0.0128
Isobaric Specific Heat Capacity - Saturated liquid (kJ/kg.K) : 1.554
Isobaric Specific Heat Capacity - Saturated vapor (kJ/kg.K) : 0.835
Latent Heat of Vaporization (Boiling point) (kJ/kg) : 250.3
Thermal Conductivity – Saturated liquid (W/m·K) : 0.0863
Thermal Conductivity – Saturated vapor (W/m·K) : 0.0131
Workplace Environmental Exposure Limit (ppm) : 1000
Flammability *1 : Non-flammable
Ozone Depletion Potential (CFC11=1) : 0
Global Warming Potential *2 (CO2=1) : 1770
Solubility in Water (ppm) : 2000
Solubility of Water (ppm) : 1250
Packaging Specifications : 10.0kg (Disposable Cylinder)

Unless otherwise specified, the values in above table are at 25°C
*1 Based on ASHRAE 34 STANDARD
*2 Based on IPCC 4th Assessment Report 2007, integration time horizon 100 years.

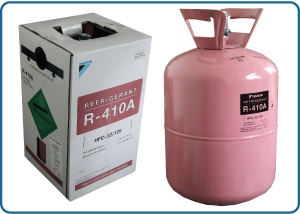

DAIKIN-410A (10.0kg)
Component : HFC-32/125
Composition (mass %) : 50/50
Molecular Weight : 72.58
Boiling Point (°C) : -51.6
Freezing Point (°C) : -Nil-
Critical Temperature (°C) : 71.47
Critical Pressure (MPa) : 4.923
Critical Density (kg/m³) : 486
Density – Saturated liquid (kg/m³) : 1061
Specific Volume – Saturated vapour (m³/kg) : 0.0153
Viscosity - Saturated liquid (mPa·s) : 0.178
Viscosity - Saturated vapor (mPa·s) : 0.0132
Isobaric Specific Heat Capacity - Saturated liquid (kJ/kg.K) : 1.711
Isobaric Specific Heat Capacity - Saturated vapor (kJ/kg.K) : 0.818
Latent Heat of Vaporization (Boiling point) (kJ/kg) : 274.8
Thermal Conductivity – Saturated liquid (W/m·K) : 0.0801
Thermal Conductivity – Saturated vapor (W/m·K) : 0.0128
Workplace Environmental Exposure Limit (ppm) : 1000
Flammability *1 : Non-flammable
Ozone Depletion Potential (CFC11=1) : 0
Global Warming Potential *2 (CO2=1) : 2090
Solubility in Water (ppm) : 2700
Solubility of Water (ppm) : 1600
Packaging Specifications : 10.0kg (Disposable Cylinder)

Unless otherwise specified, the values in above table are at 25°C
*1 Based on ASHRAE 34 STANDARD
*2 Based on IPCC 4th Assessment Report 2007, integration time horizon 100 years.
